Digital Printer

Digital Belt Printer

Specifications

Max. Print width 18m &3.2m
Ink - Color 4 Color - CMYK [Reactive, Disperce, Pigment]
Media Thickness 1.5 - 8 mm Adjustable
Sort All kind of Fabrics : Cotton, Polyster, Nylon, Silk, Viscos etc.
Media Take up Device Automatic Take up System Auto Feed & Take up System
Drying System Infrared Drying System / Gas Heatev / Thermic Fluid Heater
Interface USB 2.0 / USB 3.0 / Network Card interface
Software Neostempa, Photo Print, XAAR Maintop 6.0
Power Parameter AC 220 V, 50 Hz / 60 Hz
Operation Environments Temp 20°C-35°C - R.H. 35% Rh - 65% Rh
Resolution Epson - 4720 XAAR - 1201
2 Pass 2 - Head 75 sqm/h 2 - Head 90 sgm/h
4 - Head 150 sqm/h 4 - Head 180 sqm/h
3 Pass 2 - Head 55 sqm/h 2 - Head 72 sqm/h
4 - Head 110 sqm/h 4 - Head 144 sqm/h

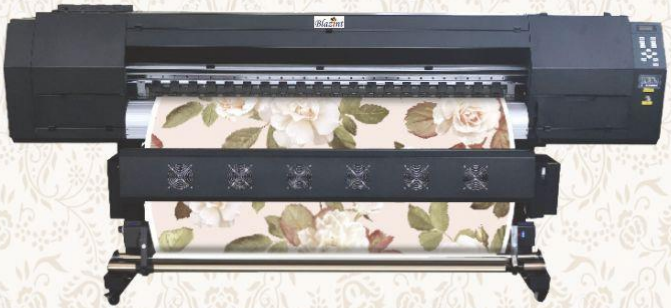

Sublimation Printer

Specifications

Model S1A1A1 / S1A2A1 / S1A4A1
Head Brand Epson 5113 With Intelligent Dot Variable Technology
No. of Heads 2 pcs. / 4 pcs.
Ink Color 4 (C MY K) Blue And Orange Optional
Type Waterbase Ink,Dye Sublimation Ink, Solvant Ink
Ink Supply Continous Supply System
Printing Speed Production Mode 2 Pass 75 Sqm/h
Resolution 3 Pass 55 Sgqm/h
Media Max Print Width 1920mm
Type Sublimation Paper
Cleaning Auto Cleaning
Drying Heating Infrared Heating
Feeding System Constant Tension High Precission Feeding System
Take-up System Auto
Resolutution & Software Resolution 1440 dpi Max
Software Neostempa / Photo Print
Operation Reuirement Interface Hi-Speed Usb 3.0
Power Ac 220V +10% ,-10%
Operation Environments Temperature 18'C-24'C
Humidity 40% RH — 60% RH
Dimention And Weight (Dimention)L*W*H 3260 x 930 x 1800
Weight 440 kg

FEATURES

  • Original THK Linear Guidrail, Lower Noise, Longer Life, Super Stability.
  • Imported Dual Direction Motor, High Resolution Driver Linear Encorder, Higher Resolution, More Stable Runing.
  • Optical Fibre Data Transmission System with High Speed Usb 3.0 InterFace More Convenient, Plug And Play.
  • Epson Eps 5113 Print Head, 4x800 Nozzles, Achieve 1440 Dpi High-Resoution Output.
  • Multimode Print Option, Common Production Mode Can Reach to High-Speed of 75 Square Meters Per hour, Faster And Higher
  • 1.5 Litre 4 Large Ink Boxes Provide Ink Durably, Keeping wide Format and Speed Output Printing Wonderfully.

XAAR I20l

  • Higher Resolution : XAAR 1201 Print head, using MEMS technology, 320 nozzles * 4 lines, high resolution up t01280dpi, 2.5 PLsmall drop provides the best combination of color output and photo-quality print.
  • Highre Printing Speed : XAAR 1201 print head, 8 grayscale droplet control technology, 4 channels ink supply system, easy to integrate, the speed can up to 45 sqm/hr based on two print heads at 4 pass.
  • Higher Stability : Applied industrial level mechanism design, cirtuit design has passed the evaluation of tens of thousands of customers use, its is perfectly explaining the super high stability and very low failure rate.
  • High-Tec Technology : 8 grayscale printing technology applied with variable drop size from 2.5PLto 7.5 PL. This allows more sharp images output with smoother gradients and quartertones under high speed or low resolution situation
