Rotary Screen Printing Machine

Width 1200 mm to 4000 mm
SPEED UP TO 120 METER PER MINUTS (DEPEND ON FABRIC GSM & TYPE)
PRINTING HEADS OPEN / CLOSE BEARING SYSTEM
NUMBER OF COLORS UP TO 16
TYPE OF MACHINE INDIVIDUAL SERVO DRIVE
COMMON SINGLE SERVO DRIVE WITH GEAR BOX
REPEAT POSSIBILITY 640/820 /914 / 1018 mm
WATER CONSUMPTION APPROXIMATE 40 to 60 LTR.
COLOR PUMP TYPE AUTO / MANUAL
SUITABILITY OF YARN, NON WOVEN, POLYESTER, VISCOS, COTTON, SYNTHETIC, KNITTED,
PRINTING MATERIAL CHIFFON AND SOME TYPES OF PAPER ALSO

Rotary Screen Printing Machine

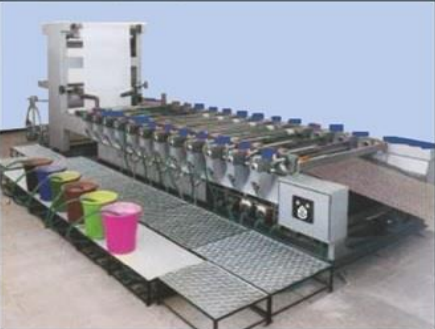

Common Servo Type: Rotary Screen Printing Machine

MACHINE DETAILS

  • Print all fabric from light synthetic to heavy cotton fabric.
  • Easy to operate, maintain and economical.
  • Mechanical synchronising gear box.
  • Common servo motor with planetory gear box.
  • Magnet roller squeeze system.
  • Corrosion resistant SS cover.
  • Open bearing system.
  • Easy handling the screen.
  • Strapless width variation between maximum and minimum printing width.

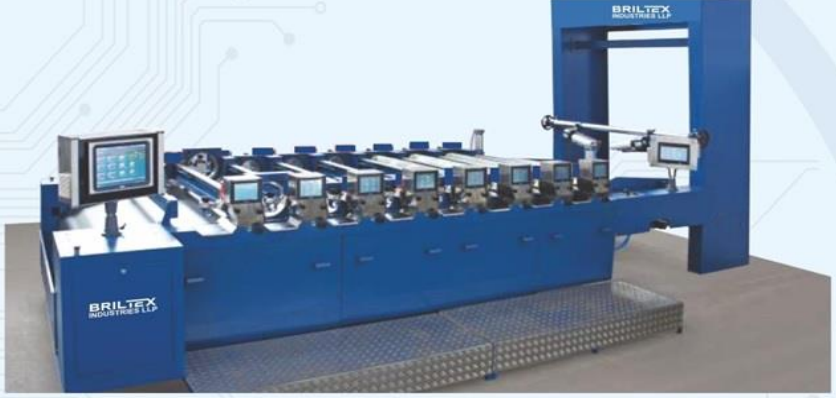

Individual Servo Type

  • Machine Details
    • Valid up to 16 colors.
    • Touch panel on every printing head
    • Individual servo drive system.
    • Auto repeat setting can easily achievable.
    • Industrial computer to control the machine.
    • Maintenance free machine from gear friction losses.
  • Individual Servo System
    • Drives of all screen heads have their ownmotors.
    • Allowing flexible setting of speed difference betweenprinting blanket and screen head.
    • Significantly energy saving can be achieve by running only required numbers of heads.
    • Zero backless servo gearbox ensure perfect fitting in long run.
  • Home Positioning System
    • Automatic Screen synchronization.
    • Easy operation in one touch.
    • Save time to synchronizing manually.
    • Reliable system for better operation.

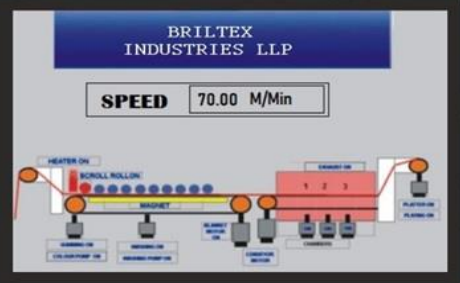

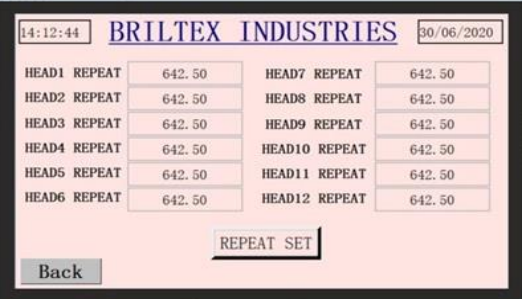

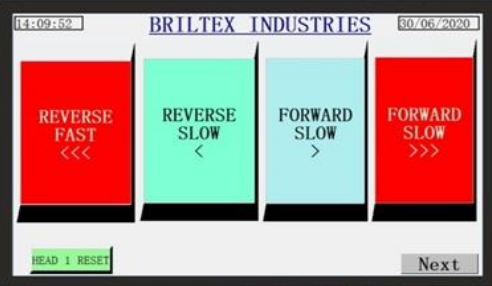

HIMI Screen: Rotary Screen Printing Machine
